Planet Eclipse Ego

Post by THE JEW (RaVeN) »

Mod for the Ego 7 to remove the QEV's (ie. many consider this their most fragile part):

http://www.pbnation.com/showthread.php? ... ht=qev+mod

The banjo fittings are 10-32UNF, while the '05/'06 Ego QEVs are 6-32 UNC (and slightly tapered I believe - the 10-32UNF thread appears parallel).

http://www.pbnation.com/showthread.php? ... st61458457
Last edited by THE JEW (RaVeN) on Tue Dec 17, 2013 3:29 pm, edited 1 time in total.
******* /=========\Image
****(_]/_____________\[_)
***** /(__)==JEW==(__)\
***** |=o__________o=|
***** |_|====---====|_|
¨˜”°º•[K]•º°”˜¨
User avatar
THE JEW (RaVeN)
Posts: 12499
Joined: Sun Mar 23, 2003 2:52 pm
Location: Bethlehem ;)
Contact:

Re: Planet Eclipse Ego

Post by THE JEW (RaVeN) »

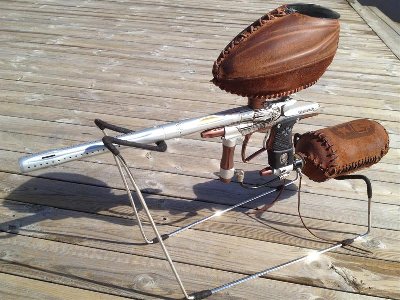

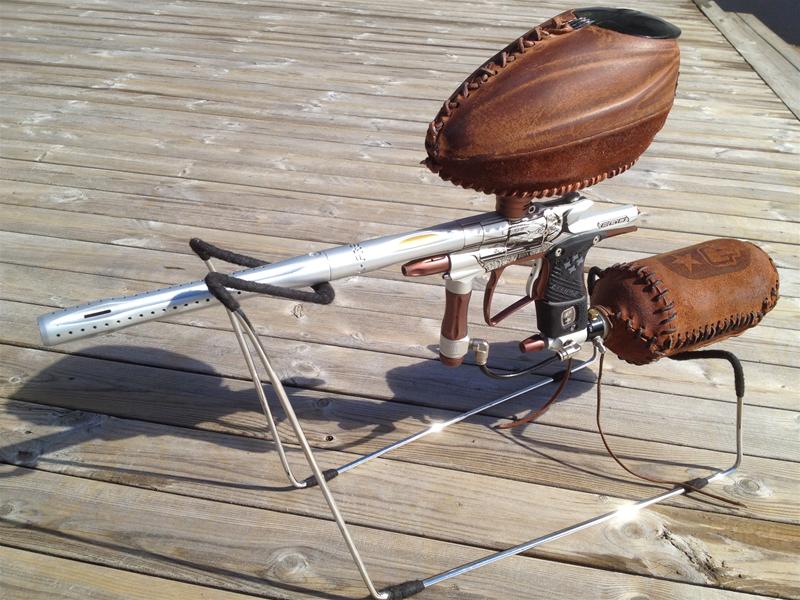

Attachments
******* /=========\Image
****(_]/_____________\[_)
***** /(__)==JEW==(__)\
***** |=o__________o=|
***** |_|====---====|_|
¨˜”°º•[K]•º°”˜¨
User avatar
THE JEW (RaVeN)
Posts: 12499
Joined: Sun Mar 23, 2003 2:52 pm
Location: Bethlehem ;)
Contact:

Re: Planet Eclipse Ego

Post by THE JEW (RaVeN) »

How to place a Mac 43 in an 05/06/Etek:

http://www.pbnation.com/showthread.php? ... st76690412
******* /=========\Image
****(_]/_____________\[_)
***** /(__)==JEW==(__)\
***** |=o__________o=|
***** |_|====---====|_|
¨˜”°º•[K]•º°”˜¨
User avatar
THE JEW (RaVeN)
Posts: 12499
Joined: Sun Mar 23, 2003 2:52 pm
Location: Bethlehem ;)
Contact:

Re: Planet Eclipse Ego

Post by THE JEW (RaVeN) »

Site showing where all PE support shops are:

http://www.planeteclipse.com/site/service_centres
******* /=========\Image
****(_]/_____________\[_)
***** /(__)==JEW==(__)\
***** |=o__________o=|
***** |_|====---====|_|
¨˜”°º•[K]•º°”˜¨
User avatar
THE JEW (RaVeN)
Posts: 12499
Joined: Sun Mar 23, 2003 2:52 pm
Location: Bethlehem ;)
Contact:

Re: Planet Eclipse Ego

Post by THE JEW (RaVeN) »

QEV threads:
You would have to drill and tap the rammer housing, as the '05/'06 Ego QEVs are 6/32 threaded, while the Etek fittings are 10/32 threaded.

Presumably if you hunted around, there would be some 6/32 threaded banjo fittings available from one source or another.

If you were to take the 6/32 threaded banjo fitting route, you might find that the rate of fire took a bigger hit than when doing this modification to an Ego7 - for one thing you would be replacing two QEVs rather than one, and for another, air flow through the 6/32 barb would be more restricted.
******* /=========\Image
****(_]/_____________\[_)
***** /(__)==JEW==(__)\
***** |=o__________o=|
***** |_|====---====|_|
¨˜”°º•[K]•º°”˜¨
